Multi-Viewing Microscope

10000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Multi-Viewing Microscope
Color White
Usage Laboratory
Theory Biological Microscope
Drawtube Binocular
Focus Range Low Positioned, Coaxial Coarse & Fine Focusing System, Fine Focusing Reading 0.002 um. Centimeter (cm)
Eyepieces WF10x/22mm
Supply Ability : 10 Piece Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 150 Piece
Price Range 10000.00 - 50000.00 INR/Piece
Price 10000 INR/Piece

Product Specifications

Color White
Product Type Multi-Viewing Microscope
Theory Biological Microscope
Eyepieces WF10x/22mm
View Head 1 pc Trinocular Head, 4 pcs Binocular Head, Inclined 45 degree/30 degree, Interpupilary Distance 50-70mm.
Drawtube Binocular
Light Source Kohler Illumination, 12V 100W Halogen Lamp/LED, With Field Diaphragm, Iris Diaphragm, Continue Brightness Adjustable.
Focus Range Low Positioned, Coaxial Coarse & Fine Focusing System, Fine Focusing Reading 0.002 um. Centimeter (cm)
Condenser Abbe Condenser N.A.1.25.
Objective Achromatic Infinity Plan Objective 4x/0.10 Infinity Plan Objective 10x/0.25 Infinity Plan Objective 40x/0.65 Infinity Plan Objective 100x/1.25, Oil. Infinity Plan Objective 20x/0.4(optional)
Working Stage Double Layer Mechanical Stage 180x160 mm, Moving Range 80x50mm, Double Slide Holder. Square Millimeter (mm2)
Usage Laboratory

Trade Information

Supply Ability 10 Piece Per Month
Delivery Time 10-30 Days
Packaging Details Thermocol boxes
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Multi-Viewing Microscope is constructed with the digital display body structure to use instantly with its automatic options without any hassle free conditions. Multi-Viewing Microscope is suitable for multipurpose usage scientific as well as laboratory treatment both. Also, it can be attainable in numerous sizes, dimensions and shapes to suit the varied needs of our consumers.

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Microscope' category

DECA - Head Microscope Theory : Other, DECA Head Microscope Product Type : Head Microscope Drawtube : Binocular Price : 10000 INR/Piece Minimum Order Quantity : 150 Color : White Eyepieces : Wide field eyepiece WF 10X with field number 22(on main head) and field number 20 (discussion head). View Head : Trinocular observation head (main head) and binocular (discussion head), inclined 30 degree and rotatable 360 degree. Diopter adjustment on left eyepiece. Interpupillary adjustment 5575mm. Multiviewing device (10 simultaneous observer). 1pc Dual Head, 8pcs Binocular Heads. Focus Range : Low Positioned, Coaxial Coarse and Fine Focusing Mechanism (Graduated, 0.002 um), with upper stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. Millimeter (mm) Working Stage : Double layer mechanical stage, stage 180x160mm, moving range 80x50mm, double slide holder . Square Millimeter (mm2) Condenser : Swing out Type N.A. 0,9 or N.A. 1,2 with centering System. Usage : laboratory

Send Inquiry

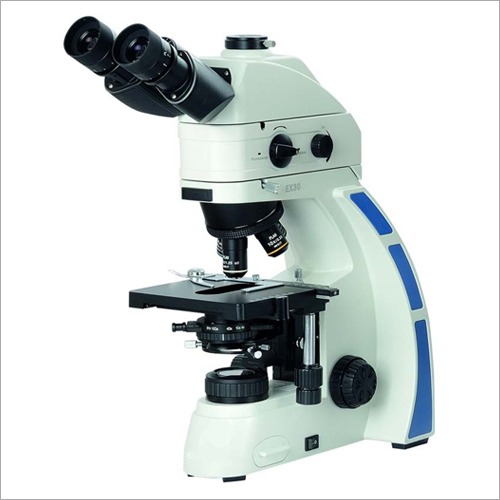

KLM-9001iA Fluorescence Microscope Theory : Fluorescence Microscope Product Type : Fluorescence Microscope Drawtube : Binocular Price : 10000 INR/Piece Minimum Order Quantity : 150 Color : White Eyepieces : PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable 5. View Head : Binocular, 30 Inclined, Interpupillary Distance 5075mm. Focus Range : Low Position Coaxial Coarse & Fine Focusing Knob, with Safety Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm. Millimeter (mm) Working Stage : Double Layer Mechanical Stage 150x140mm, Moving Range 76x50mm, Precision 0.1mm. Square Millimeter (mm2) Condenser : Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed. Usage : Laboratory Light Source : 3W LED, Intensity Adjustable, Center Fixed.

Send Inquiry

Scanning Electron Microscope Theory : Biological Microscope Product Type : Scanning Microscope Drawtube : Binocular Price : 10000 INR/Piece Minimum Order Quantity : 150 Working Stage : 3axis Motorized stage X 150mm 20mm Y 150mm 20mm Z 75mm 20mm, Motorized Scan Area of up to 100mm x 100mm, Not require sample preparation, Computer and manual operation control the stage movement Square Millimeter (mm2) Light Source : Bright field and dark field

Send Inquiry

Advance Microscope Research Theory : Biological Microscope Product Type : Advance Microscope Research Drawtube : Binocular Price : 10000 INR/Piece Minimum Order Quantity : 150 Color : White Eyepieces : High eyepoint wide field plan eyepiece PL 10x22mm, recticle can be assembled. View Head : Compensation Binocular Head 30 Inclined, 360 Rotatable, Interpupillary Distance 5475mm, Diopter +/5 Adjustable, Precision 0.1. Focus Range : Coaxial Focus System with Upper Limited and Tension Adjustment; Coarse Range: 25mm; Fine Precision: 0.002mm; Focus Height Adjustable. Millimeter (mm) Working Stage : Double Layer Mechanical Stage 175x145mm, With Special Fabrication Processing, Anticorrosive And Antifriction; X/Y Moving Hand Wheel In Right Or Left Hand; Moving Range 76x50mm, Precision 0.1mm. Square Millimeter (mm2) Condenser : N.A.1.2/0.22 Swingout Type Achromatic Condenser. Usage : Laboratory
