Operating Microscope

Product Details:

Color White
Power AC 100V - AC 240V. Volt (v)
Usage Laboratory
Theory Operating Microscope
Drawtube Binocular
Magnification 3x, 5x, 8x, 4.7x, 7.5x, 12x.
Eyepiece Tube Binocular observation Tube, Straight.
Supply Ability : 10 Piece Per Month
Share Your Product:

10000 INR/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Price And Quantity

Price 10000 INR/Piece
Minimum Order Quantity 150 Piece
Price Range 10000.00 - 50000.00 INR/Piece

Product Specifications

Theory Operating Microscope
Power AC 100V - AC 240V. Volt (v)
Usage Laboratory
Objective Achromatic 3 Objectives: F=200mm & F=300mm (M45x0.75mm).
Eyepiece Tube Binocular observation Tube, Straight.
Illumination Coaxial illumination with 10W LED Lamp light source, brightness adjustable, illumination > 30000Ix.
Drawtube Binocular
Color White
Interpupillary Distance 50mm - 80mm. Millimeter (mm)
Magnification 3x, 5x, 8x, 4.7x, 7.5x, 12x.

Trade Information

Supply Ability 10 Piece Per Month
Delivery Time 10-30 Days
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

Specification:

Interpupillary Tube:

50mm - 80mm.

Diopter:

+5D.

Magnification Changer:

3 - step magnification change: 0.6x, 1x, 1.6x.

Focal length of objective:

3 objectives: F=200 & F=300 (M45 x 0.75mm).

Total Magnifications:

3x, 5x, 8x, 4.7x, 7.5x, 12x.

Filter:

Built in green and yellow filter.

Linear field:

60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm.

Stand:

3-parts column fitted on the five star base with casters.

Balancing Arm:

2-parts arm with universal joints.

Power Supply:

AC 100V - AC 240V.

Illumination System:

Coaxial illumination with 10W LED Lamp light source, brightness adjustable, illumination > 30000Ix.

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Microscope' category

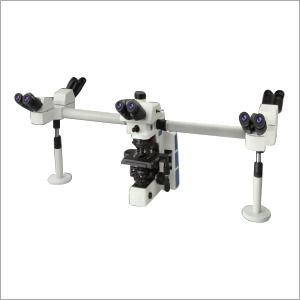

Multi-Viewing Microscope Price : 10000 INR/Piece Drawtube : Binocular Minimum Order Quantity : 150 Theory : Biological Microscope Eyepieces : WF10x/22mm Focus Range : Low Positioned, Coaxial Coarse & Fine Focusing System, Fine Focusing Reading 0.002 um. Centimeter (cm) Product Type : MultiViewing Microscope Condenser : Abbe Condenser N.A.1.25. View Head : 1 pc Trinocular Head, 4 pcs Binocular Head, Inclined 45 degree/30 degree, Interpupilary Distance 5070mm. Usage : Laboratory Working Stage : Double Layer Mechanical Stage 180x160 mm, Moving Range 80x50mm, Double Slide Holder. Square Millimeter (mm2) Color : White Light Source : Kohler Illumination, 12V 100W Halogen Lamp/LED, With Field Diaphragm, Iris Diaphragm, Continue Brightness Adjustable. Objective Achromatic : Infinity Plan Objective 4x/0.10 Infinity Plan Objective 10x/0.25 Infinity Plan Objective 40x/0.65 Infinity Plan Objective 100x/1.25, Oil. Infinity Plan Objective 20x/0.4(optional)

Send Inquiry

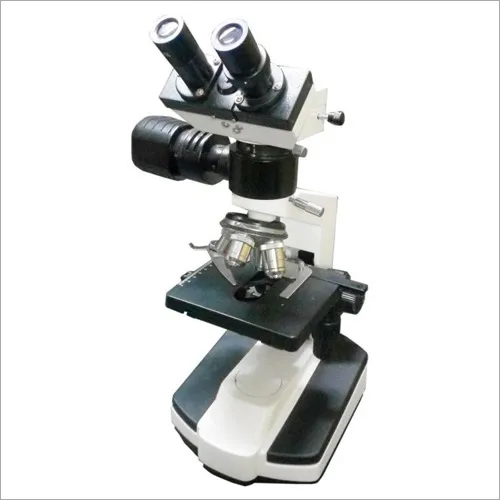

Metallurgical Microscope Price : 10000 INR/Piece Drawtube : Binocular Minimum Order Quantity : 150 Theory : Metallurgical Microscope Eyepieces : WF20 / 18mm WF10 / 18mm, Crosshair with Reticule 0.1mm. Focus Range : Coaxial Coarse & Fine Focusing Adjustment, Mechanism Fine Focusing Scale Value 0.002m. Millimeter (mm) Product Type : Metallurgical Microscope Condenser : N.A.1.25 Abbe Condenser with Iris diaphragm 1/4 filter. View Head : Compensation Free Trinocular Head Inclined at 45 degree (55mm75mm). Usage : Laboratory Working Stage : Double Layer Mechanical Stage. Stage Size: 140mm x 140mm. Moving Range 75mm x 50mm. Square Millimeter (mm2) Color : White Light Source : Epiillumination: Halogen Bulb 6V/20W, AC85V230V, Adjustable Brightness. Transmission Illumination: Halogen Bulb. 6V/20W, AC85V230V, Adjustable Brightness.

Send Inquiry

Advance Research Microscope Price : 10000 INR/Piece Drawtube : Binocular Minimum Order Quantity : 150 Theory : Other Eyepieces : High eyepoint wide field plan eyepiece PL 10x22mm, recticle can be assembled. Focus Range : Coaxial Focus System With Upper Limited And Tension Adjustment; Coarse Range: 25mm; Fine Precision: 0.002mm; Focus Height Adjustable. Millimeter (mm) Condenser : N.A.1.2/0.22 Swingout Type Achromatic Condenser. View Head : Compensation Binocular Head 30 degree Inclined, 360 degree Rotatable, Interpupillary Distance 5475mm, Diopter +/5 Adjustable, Precision 0.1 Working Stage : Double Layer Mechanical Stage 175x145mm, With Special Fabrication Processing, Anticorrosive And Antifriction; X/Y Moving Hand Wheel In Right Or Left Hand; Moving Range 76x50mm, Precision 0.1mm Square Millimeter (mm2) Light Source : Blue Filter Objective Achromatic : Infinity Plan Achromatic Objectives 5x ,WD=7.18mm, 10x ,WD=4.70mm, 20x ,WD=1.75mm, 40x (Spring),WD=.072mm, 100x (Spring, Oil) ,WD=0.15mm

Send Inquiry

Binocular Microscope Price : 10000 INR/Piece Drawtube : Binocular Minimum Order Quantity : 150 Theory : Biological Microscope Eyepieces : High eyepoint wide field plan eyepiece PL 10x22mm, recticle can be assembled. Focus Range : Coaxial Focus System with Upper Limited and Tension Adjustment; Coarse Range: 25mm; Fine Precision: 0.002mm; Focus Height Adjustable. Millimeter (mm) Product Type : Binocular Microscope Condenser : N.A.1.2/0.22 Swingout Type Achromatic Condenser. View Head : Compensation Binocular Head 30 Inclined, 360 Rotatable, Interpupillary Distance 5475mm, Diopter +/5 Adjustable, Precision 0.1. Usage : Laboratory Working Stage : Double Layer Mechanical Stage 175x145mm, With Special Fabrication Processing, Anticorrosive And Antifriction; X/Y Moving Hand Wheel In Right Or Left Hand; Moving Range 76x50mm, Precision 0.1mm. Square Yard (yd2) Color : White
